BELT +

CONTROL PANEL WITH DRY-RUN PROTECTION AND SELF-LEARNING SET UP

BELT+ is a special control board for the protection and control of both single and three phase electropumps.
In addition to usual thermal-amperometric protection, this device stands out for control and protection of electropumps from dry running.

FUNCTIONALITY:
• Manual or automatic mode
• All settings are done through a keyboard and a display
• On / Off switch
• Confguration for start capacitor insertion (single phase version)
• Digital auxiliary input to start/stop the pump and connection to float switch, pressure switch,…
• Output with two cable glands

COVERED PROTECTIONS:
• IP 55 protection class
• Protection against dry running, by checking the motor cosphi; automatically restored after 10-20-40-80-120
minutes
• Overload protection
• Overvoltage/Undervoltage protection
• Short-circuit protection
• Phase failure protection (three-phase motors

documentation

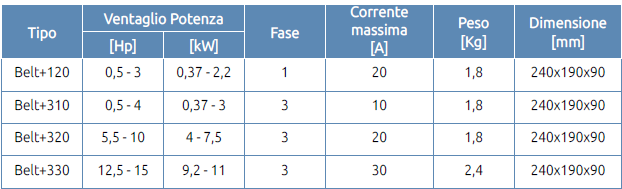

Technical Specifications 50Hz
Technical Specifications 60Hz
